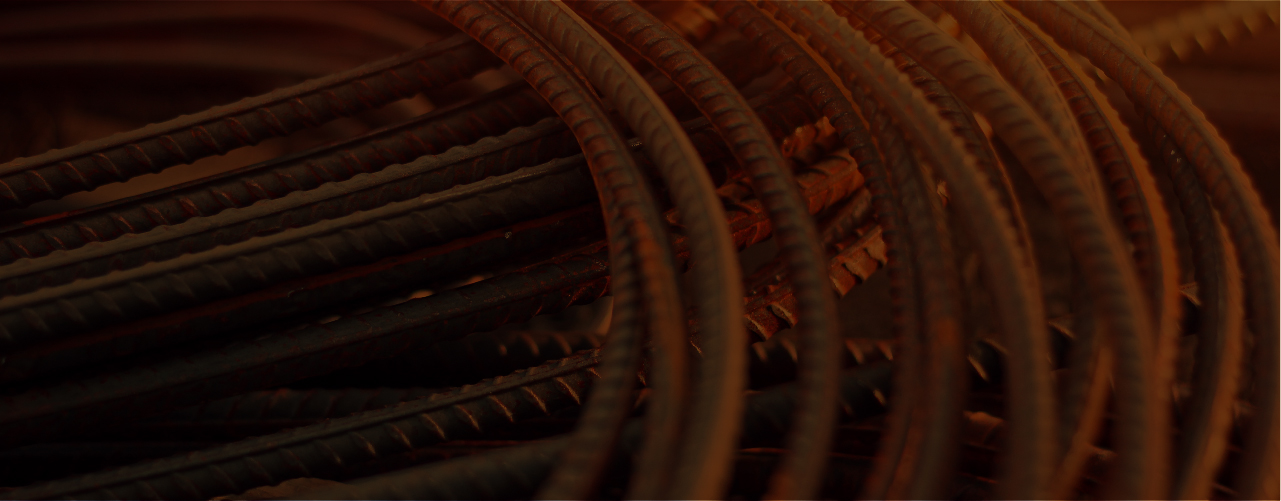

TMT rebars

TMT Bars find use in core infrastructure development like construction of multi storey buildings, bridges, dams, railways, power plants as reinforcement material. We supply rebars which comes with a series of inherent advantages like consistent quality along with uniform grades, dimensions and tolerance, also with superior stability, properties for higher durability and easy workability.

Various grades of rebars
Fe 500, Fe 500D, Fe 550, Fe 550D, Fe 600

Sizes available
8mm, 10mm, 12mm, 16mm, 20mm, 25mm, 32mm, 36mm, 40mm

Mechanical properties

Description	IS: 1786 Fe 500	IS: 1786 Fe 500D
0.2% Proof Stress(min N/mm2)	500	500
Ultimate Tensile Strength (min N/mm2)	545	565
%Total Elongation at max force min	-	5
%Elongation.min	12	16
Bend	4d to 5d	3d to 4d
Re-bend	5d to 7d	4d to 6d
Carbon (% max) Phosphorus & Sulphur (% max)	0.300 0.055	0.25 0.040
Phosphorus + Sulphur (% max)	0.105	0.075
CE (% max)	0.42	0.42
Nitrogen (ppm max)	120	120

Chemical properties

Chemical Composition

Description	BIS Specification TMX
Description	Fe-500 % max	Fe-500D % max
Carbon	0.30	0.25
Sulphur (S)	0.055	0.04
Phosphorus	0.055	0.04
Sulphur + Phosphorus	0.105	0.075

Section Weight / Per Meter

DIA (mm)	Minimum (BIS)	Standard (BIS)	Maximum (BIS)	Tolerance (BIS)
8	0.367	0.395	0.422	± 7%
10	0.574	0.617	0.660	± 7%
12	0.844	0.888	0.932	± 5%
16	1.500	1.579	1.658	± 5%
20	2.393	2.466	2.541	± 3%
25	3.739	3.854	3.971	± 3%
32	6.126	6.125	6.505	± 3%
36	7.756	7.996	8.235	± 3%
40	9.576	9.872	10.168	± 3%

Bend & Re-bend Properties

Test	Fe - 500 (IS:1786-2008)	Fe - 500D (IS:1786-2008)
Bend	4d for (8 to 20)	3d for (8 to 20)
Bend	5d for (25 to 40)	4d for (25 to 40)
Re-bend	5d for (8 to 10)	4d for (8 to 10)
Re-bend	7d for (12 to 40)	6d for (12 to 40)
